How to tighten the figurine assembly
TOOLS REQUIRED
Medium slotted screwdriver.
The stainless tube goes through the figurine assemble.
Mount the coupler with the center button to the figurine lower tray.

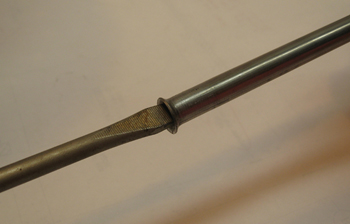

Slide the stainless tube through so the flare seats against the button.

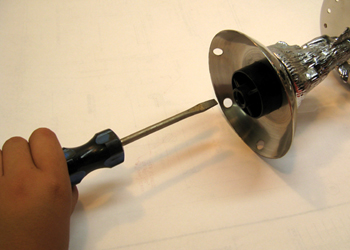

Find a slotted type screwdriver that the tip will fit into the tube to keep it from turning.

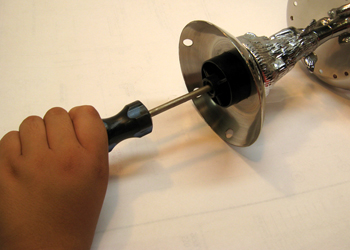

Insert the screwdriver through the coupler into the stainless tube.
This will keep it from turning when you tighten the top nut in the chain tray.
Install the figurine foot so the 3 coupler screws don't interfere with the figurine bottom.

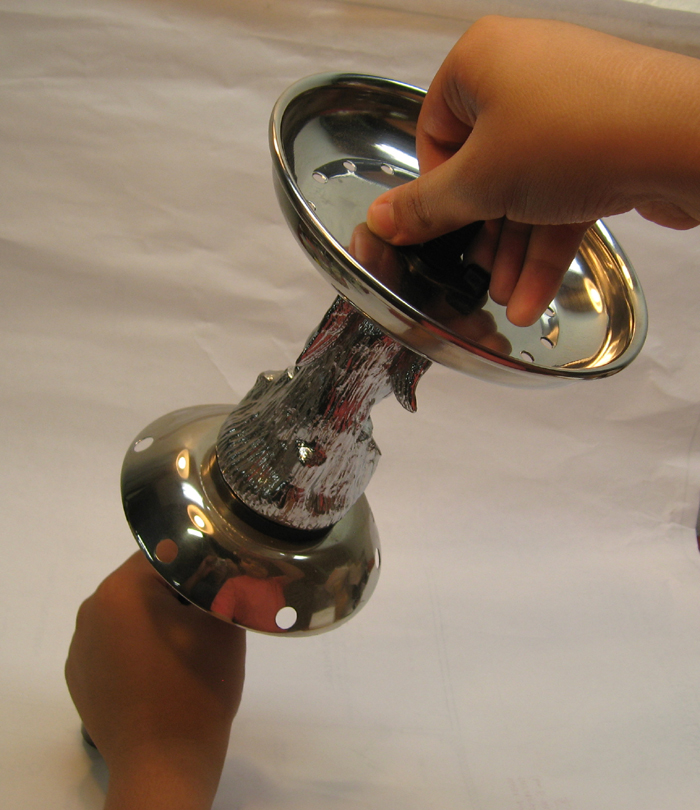

Assemble the figure top spacer and chain tray.
Hold the screwdriver in the tube and tighten the top nut.
This top nut should never be removed.
Once your figurine assemble is together, it never requires disassembly.

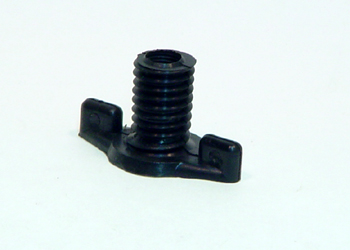

Figurine Top Nut
Your tulip assembly screws onto it.
